No. of Fins

N

Any

Fin Height

H

50 – 400 MM

Coil Width

W

300 – 1300 MM

Fin Pitch

P

≥40 MM

Inner Gap

IG

6 MM & 8 MM

Select 8 6

Select 8 6

Select 8 6

Select 8 6

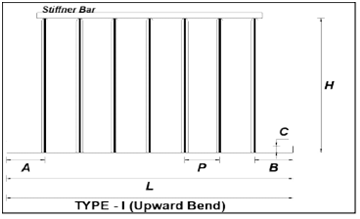

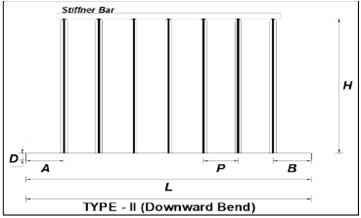

Type of Panel

TYPE 1, 2 OR NO BEND

Front Edge

B

≥30MM

Rear Edge

A

≥30MM

Upward Bending

C

≥20MM

Downward Bending

D

≥20MM

Sheet Thickness

T

1 – 1.5 MM

Total Length of Panel

L

IN MM

Stiffener Bar

8 MM

Bottom Strip Weld

YES/NO

Select Yes No

Select Yes No

Select Yes No

Select Yes No

Embossing

YES/NO

Select Yes No

Select Yes No

Select Yes No

Select Yes No

Spot Welding on Embossing

YES/NO

Select Yes No

Select Yes No

Select Yes No

Select Yes No

Quantity

IN Nos.

Any Other Detail

Attached Files
